ZBPH-650/950

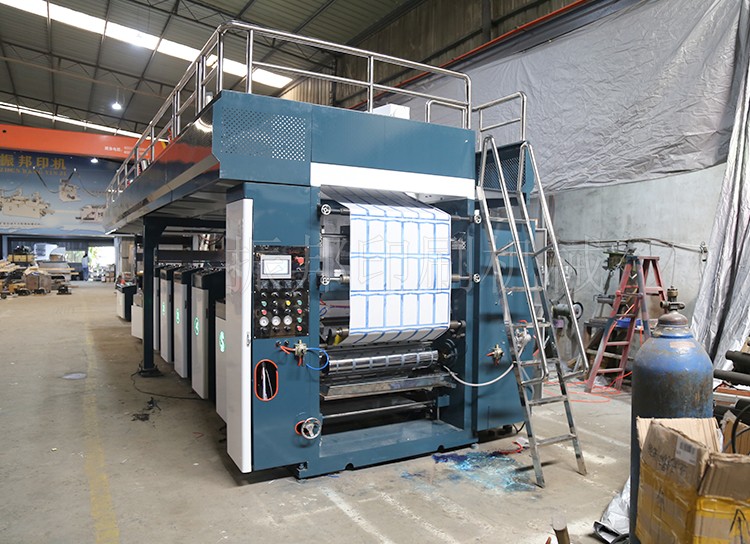

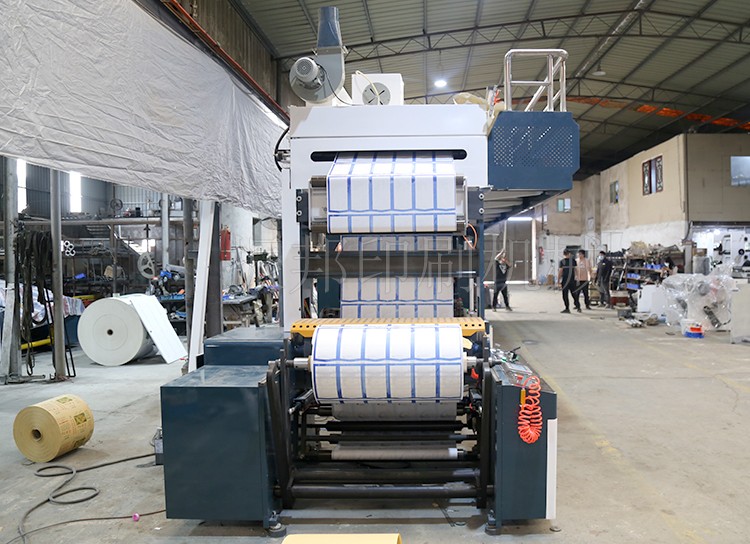

Medical packaging bag frame coating flexographic printing machine

Product Overview


Characteristic Parameters

医疗包装袋框涂柔版印刷机(ZBPH-650mm)

特   点:

     本机主要用于医疗行业的包装袋印刷和涂胶,正面多色印刷,反正涂胶,套色精准,速度快,实现高速、高效,环保节能要求,可选配自动套色功能。

技术参数:

Model 型号

ZBPH-650

ZBPH-950

Max. Printing speed最大印刷速度

150m/min

150m/min

Max. web width最大卷筒纸宽度

650mm

950mm

Max. printing width最大印刷宽度

620mm

920mm

Max. Gluing Width最大涂胶宽度

620mm

920mm

Printing Length 印刷周长

222-800mm

285-800mm

Max. Unwinding diameter最大放卷直径

Ф1200mm

Ф1200mm

Max. Rewinding diameter最大收卷直径

Ф1200mm

Ф1200mm

Paper Thickness适用纸张厚度

40-350g

40-350g

Main Motor Power主机功率

7.5kw

11kw

Suitable Ink 适用油墨

Water-basicInk

Water-basicInk

Precision of chromatography套准精度

±0.1mm

±0.1mm

Overall Dimension机器尺寸

11000x1700x3500mm

13000x2300x3500mm

Power Supply Voltage电源要求

380V 3PH 50HZ

380V 3PH 50HZ
