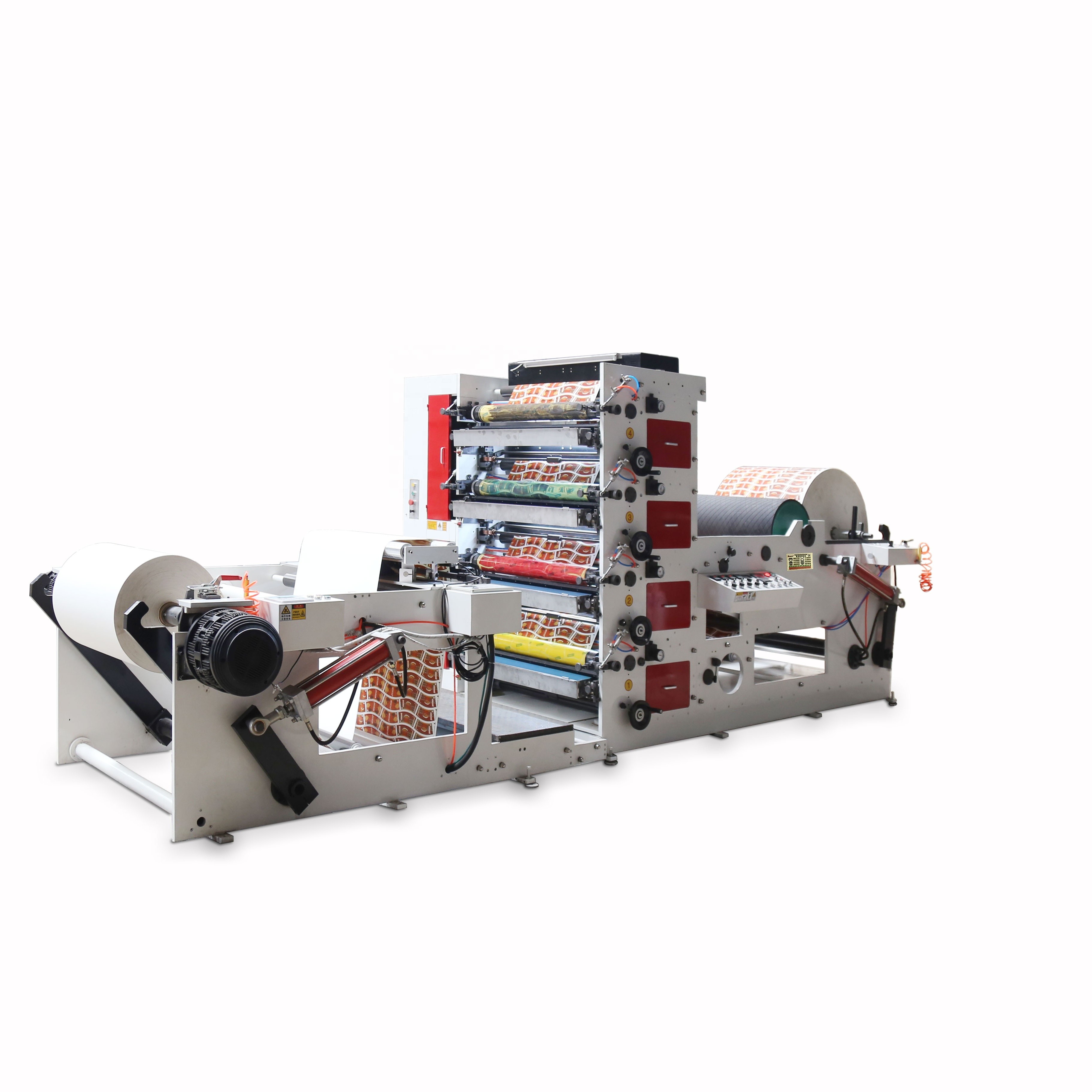

Paper cups printer

Product Overview

Characteristic Parameters

RY-650/950 纸杯印刷机特点:

1, using ceramic anilox roller transfer ink.

2, feeding and discharging control by magnetic powder brake and clutch (or equipped with Japan's mitsubishi automatic tension controller).

3, each printing unit adopts 360 degrees weeks to adjust version.

4, each printing unit has a set of infrared drying device.

5, ink roller can automatically from when parking, and low speed operation, and to prevent ink and stem node.

6, main electromotor adopt import frequency conversion stepless speed regulation.

7, from the cylinder material feeding, corrective, printing, polishing, automatic infrared drying, glazing (UV), laminating, round knife die cutting, waste, cutting, a complete winding (sliced), is the offset presses commercial paper, high-grade stickers trademark the ideal model

Speed 100 m/min color 5 colors maximum feed width 650 mm

Put of the maximum printing width is 630 mm in diameter 630 mm maximum winding diameter 1000 mm 175-580 - mm printing circumference alignment precision of + / - 0.15 mm

2500 * 3300 * 1450 w h l shape size (mm) machine weighs About 3500 kg
