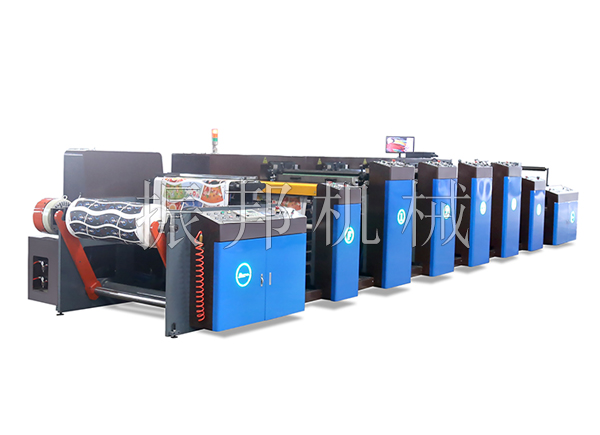

Petal type flexographic printing machine

Product Overview

Petal type flexographic printing machine

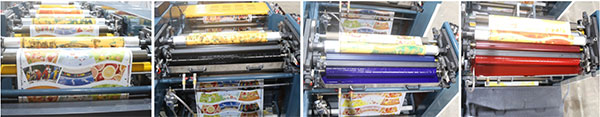

Main features: 1 Petal plate loading, anilox roller and plate roller are quick change structure.

2. The printing department operates in a "fool" mode, and the pressing position of the plate roller and the anilox roller is in place at one time.

3. The registration status remains unchanged in the process of raising and lowering.

The main technical parameters and functions are as follows:

1. The maximum unwinding diameter is 1000mm

2. The length of repeated printing is 220mm-800mm

3. Maximum web width 990mm

4. Maximum printing width 980mm

5. The thickness of machine wall panel is 38mm

6. The thickness of printing paper is 35g-120g

9. Gear specification: 1 / 8 "CP, pitch: 3 175mm

10. Plate thickness: 1.7mm

11. The thickness of plate pasting tape is 0.38mm

12 overprint accuracy ± 0.15mm

13 main motor power 5.5kw

14. Winding motor power: 7.5kw

15. The design speed of the machine is 0-150m / min

16. Total power: 45KW

17 power supply demand 380V 3Ph 50Hz

18 air pressure 100psi (0.6MPa)


Characteristic Parameters

Petal type flexographic printing machine

Main features: 1 Petal plate loading, anilox roller and plate roller are quick change structure.

2. The printing department operates in a "fool" mode, and the pressing position of the plate roller and the anilox roller is in place at one time.

3. The registration status remains unchanged in the process of raising and lowering.

The main technical parameters and functions are as follows:

1. The maximum unwinding diameter is 1000mm

2. The length of repeated printing is 220mm-800mm

3. Maximum web width 990mm

4. Maximum printing width 980mm

5. The thickness of machine wall panel is 38mm

6. The thickness of printing paper is 35g-120g

9. Gear specification: 1 / 8 "CP, pitch: 3 175mm

10. Plate thickness: 1.7mm

11. The thickness of plate pasting tape is 0.38mm

12 overprint accuracy ± 0.15mm

13 main motor power 5.5kw

14. Winding motor power: 7.5kw

15. The design speed of the machine is 0-150m / min

16. Total power: 45KW

17 power supply demand 380V 3Ph 50Hz

18 air pressure 100psi (0.6MPa)
